Flashing nozzle Fluent tutorial#

This tutorial shows how to use the barotropy Python package to generate barotropic property models and use them in ANSYS Fluent.

You can download the Fluent files used in this tutorial from this GitHub release.

1. Installation#

Create a clean Python environment and install barotropy.

Option 1: Using Conda#

If you use miniconda to manage your virtual environemnts

conda create -n barotropy-env python=3.10 -y
conda activate barotropy-env
pip install barotropy

Option 2: Using Python venv#

If you prefer to avoid conda you can also create a lightweight virtual environmnet using venv. If you are using git-bash on windows

python -m venv env
source env/Scripts/activate
python -m pip install barotropy

Or if you are using Linux or mcOS

python3 -m venv env
source env/bin/activate
pip install barotropy

2. Generate the barotropic model#

To generate the barotropic model, simply run the script:

python create_barotropic_model.py

This will:

  • Simulate a barotropic expansion of CO₂

  • Fit polynomial expressions for key properties

  • Export Fluent-compatible expressions in barotropic_model/fluent_expressions.txt

  • Save plots and polynomial data in the barotropic_model/ folder

Below is a breakdown of the main script components.

Step 2.1: Define the fluid and thermodynamic conditions#

We use CO₂, expanding from 37.00 °C and 91 bar. The outlet pressure is set to just above the triple point to cover a wide range of thermodynamic states into the two-phase region.

fluid_name = "CO2"
fluid = bpy.Fluid(name=fluid_name, backend="HEOS")
T_in = 37.00 + 273.15                       # [K]
p_in = 91e5                                 # [Pa]
p_out = 1.1 * fluid.triple_point_liquid.p   # [Pa]

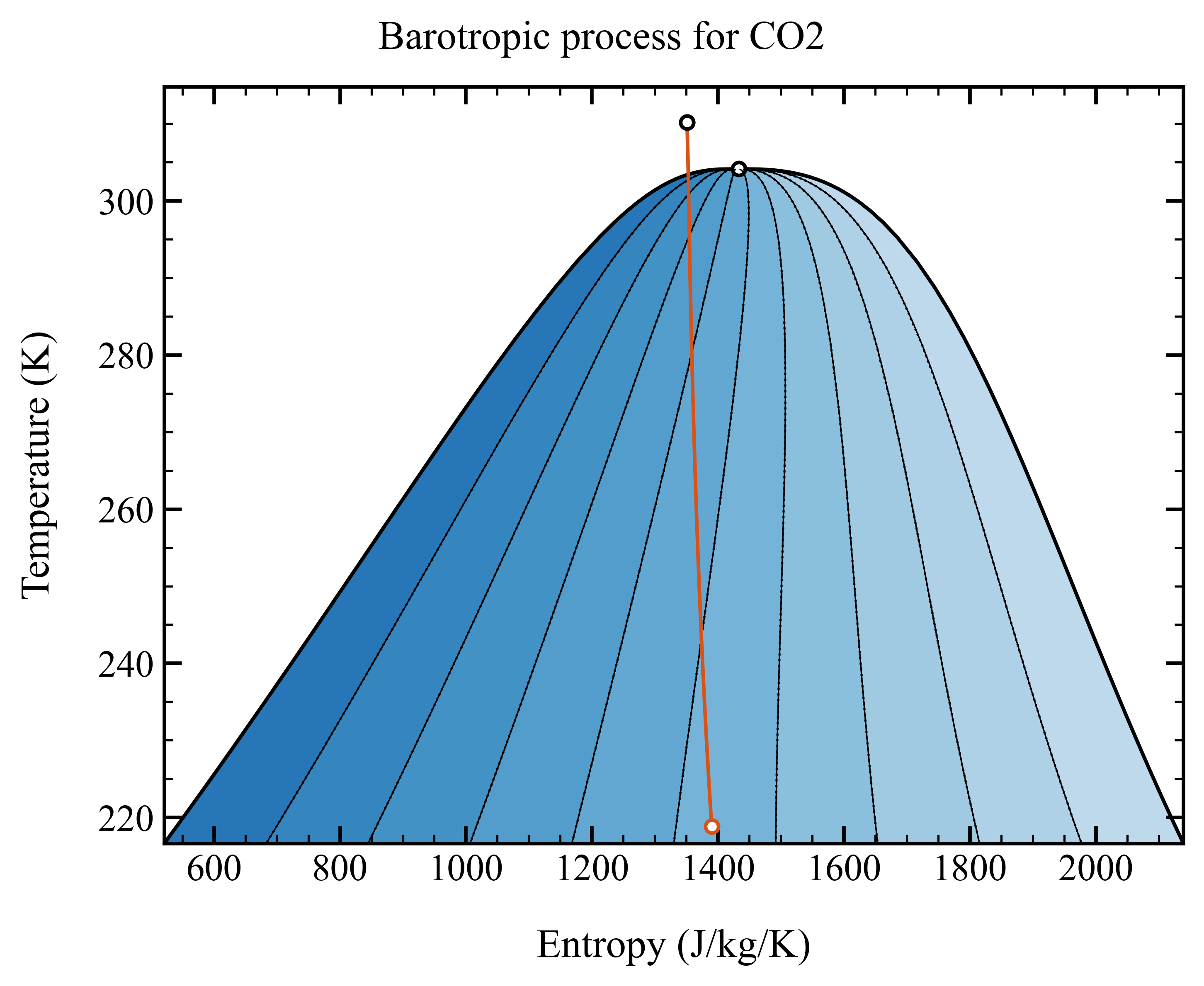

The corresponding expansion is illustrated in the temperature-entropy diagram below

Step 2.2: Set up the barotropic model#

We assume thermodynamic equilibrium during expansion and define a polytropic efficiency of 80%. The model is configured to fit fifth-degree polynomials for the properties specified in polynomial_variables:

model = bpy.BarotropicModel(
    fluid_name=fluid_name,
    T_in=T_in,
    p_in=p_in,
    p_out=p_out,
    efficiency=0.8,
    calculation_type="equilibrium",
    HEOS_solver="hybr",
    ODE_solver="LSODA",
    ODE_tolerance=1e-9,
    polynomial_degree=5,
    polynomial_format="horner",
    output_dir=DIR_OUT,
    polynomial_variables=[
        "density", "viscosity", "speed_sound",
        "void_fraction", "vapor_quality",
    ],
)

Step 2.3: Solve, export, and visualize#

We evaluate the expansion, fit the polynomials, export the expressions, and generate plots of the thermodynamic path and fitting error for each variable.

model.solve()
model.fit_polynomials()
model.export_expressions_fluent(output_dir=DIR_OUT)
model.export_expressions_cfx(output_dir=DIR_OUT)

model.poly_fitter.plot_phase_diagram(
    fluid=fluid,
    var_x="s",
    var_y="T",
    savefig=True,
    showfig=True,
    plot_spinodal_line=True,
)

for var in model.poly_fitter.variables:
    model.poly_fitter.plot_polynomial_and_error(
        var=var,
        savefig=True,
        showfig=True,
    )

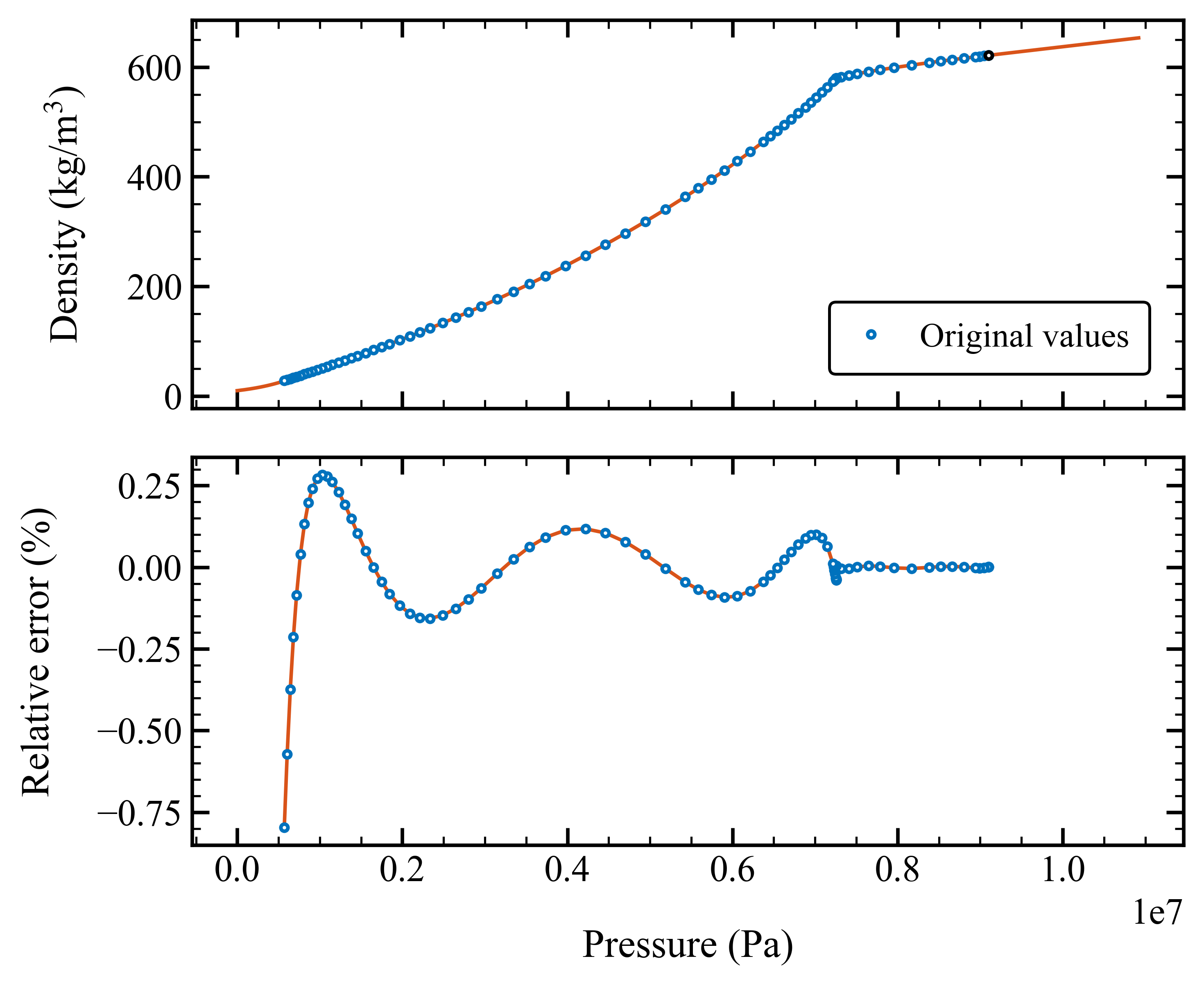

The output barotropic model for density is illustrated below, note the slope discontinuity when the fluid enters the two-phase region:

3. Use the barotropic model in ANSYS Fluent#

Step 3.1: Set boundary conditions#

In Fluent, define the boundary conditions for a high-expansion simulation:

  • Set inlet pressure to 91 bar

  • Leave inlet temperature undefined (the barotropic model does not solve the energy equation)

  • Set a low outlet pressure to simulate a supersonic expansion

Step 3.2: Load Fluent expressions#

Open the file barotropic_model/fluent_expressions.txt. It contains Fluent-compatible expressions for:

  • barotropic_density

  • barotropic_viscosity

  • barotropic_speed_sound

  • barotropic_void_fraction

  • barotropic_vapor_quality

Each expression is defined as a function of absolute pressure in Pascal. Example snippet:

FLUENT expressions for barotropic properties
Creation datetime: 2025-04-01 18:06:17.871687

barotropic_density
(IF(AbsolutePressure >= 9.0999999999999702e+06 [Pa],
6.2148013934931805e+02 + 1.5932422444928670e+02 * (AbsolutePressure / 9.0999999999999702e+06 [Pa] - 1.0000000000000000e+00),
IF(AbsolutePressure >= 5.6976077766833338e+05 [Pa],
IF(AbsolutePressure >= 7.2572793508720277e+06 [Pa],
-5.1363315356843734e+04 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(2.8009287872990133e+05 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(-6.0539298600144289e+05 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(6.5489011014216742e+05 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(-3.5420812394309556e+05 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(7.6602916568662738e+04))))),
-1.2569038576746436e+00 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(4.7061624129454106e+02 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(-2.5560853135338277e+02 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(1.7672907867012368e+03 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(-2.3964310754149801e+03 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(1.3676395581198071e+03)))))),
2.7605122354415986e+01 * exp((AbsolutePressure / 9.0999999999999702e+06 [Pa] - 0.06261107446904783) / (6.0385944414899369e-02))))) * 1 [kg/m^3]

barotropic_viscosity
(IF(AbsolutePressure >= 9.0999999999999702e+06 [Pa],
4.6730575276920754e-05 + 1.8742465072250220e-05 * (AbsolutePressure / 9.0999999999999702e+06 [Pa] - 1.0000000000000000e+00),
IF(AbsolutePressure >= 5.6976077766833338e+05 [Pa],
IF(AbsolutePressure >= 7.2572793508720277e+06 [Pa],
-5.0760061781238647e-03 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(2.7602395307420261e-02 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(-5.9675812273308884e-02 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(6.4571707824639418e-02 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(-3.4930618757101566e-02 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(7.5550646517515540e-03))))),
1.0673315810985840e-05 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(5.1178089099233773e-05 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(-7.2644038743756688e-05 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(1.2676076730927402e-04 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(-7.7702338622608316e-05 + (AbsolutePressure / 9.0999999999999702e+06 [Pa]) *
(1.2240006030135682e-05)))))),
1.3622786101453386e-05 * exp((AbsolutePressure / 9.0999999999999702e+06 [Pa] - 0.06261107446904783) / (3.1319008320950764e-01))))) * 1 [Pa*s]

Step 3.3: Define custom named expressions#

Define Named Expressions in Fluent to specify the fluid properties as functions of pressure.

  • barotropic_density and barotropic_viscosity are mandatory — these are used during the CFD solution.

  • The other expressions (speed_sound, void_fraction, vapor_quality) are optional and can be used for postprocessing.

Copy and paste the corresponding content from barotropic_model/fluent_expressions.txt into each expression field.

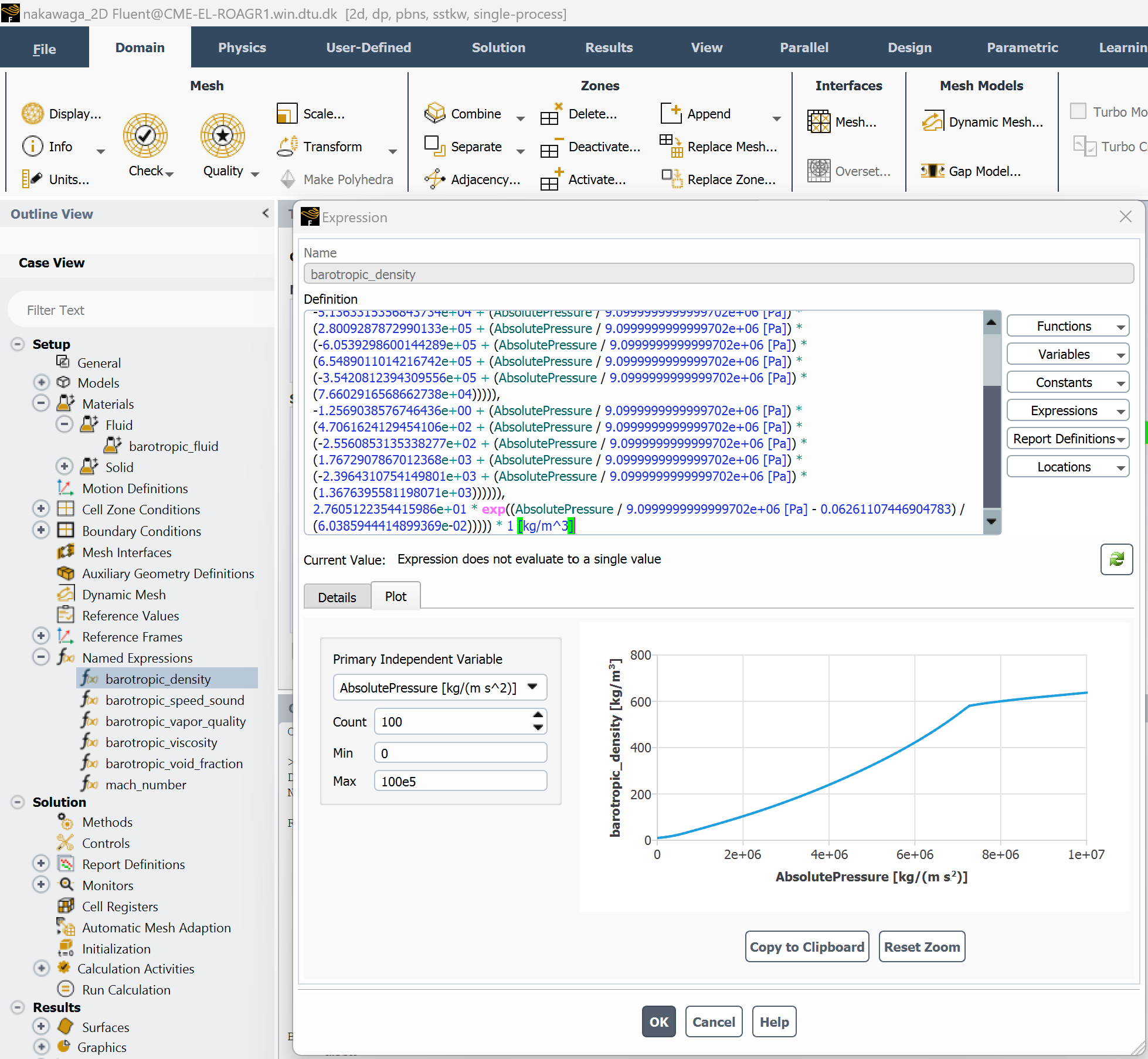

You can plot each expression directly in Fluent to verify correctness.

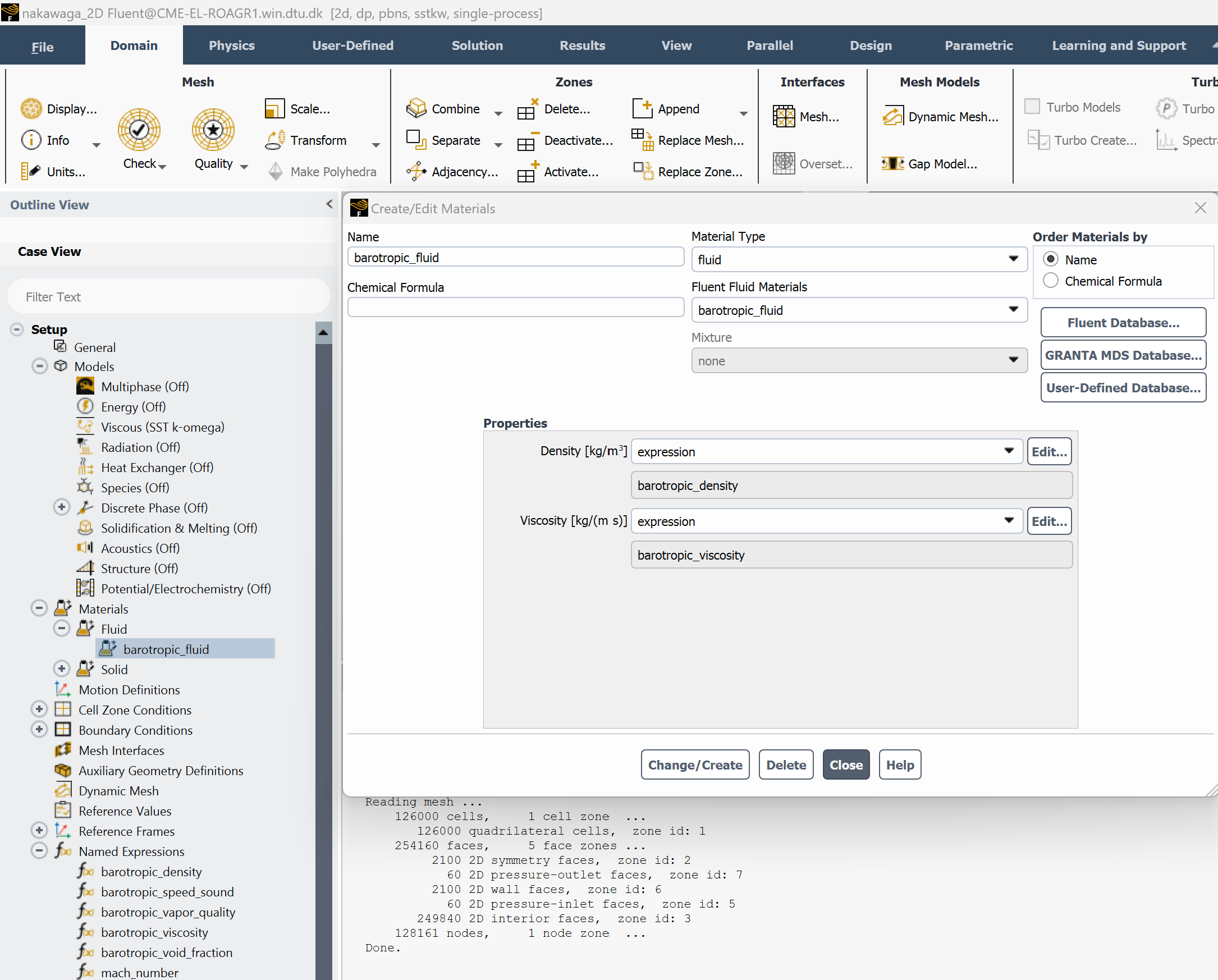

Step 3.4: Create a barotropic fluid and assign expressions#

Define a new fluid in Fluent:

  • Set density and viscosity as functions using your previously defined expressions (e.g., barotropic_density, barotropic_viscosity)

  • Disable the energy equation, as the barotropic model assumes a polytropic process and does not solve for temperature

Step 3.5: Initialize and run the simulation#

  • Use Hybrid Initialization to initialize the flow field

  • Start solving with a time scale factor of 1.0

  • After a few iterations, you can increase the time scale factor to accelerate convergence

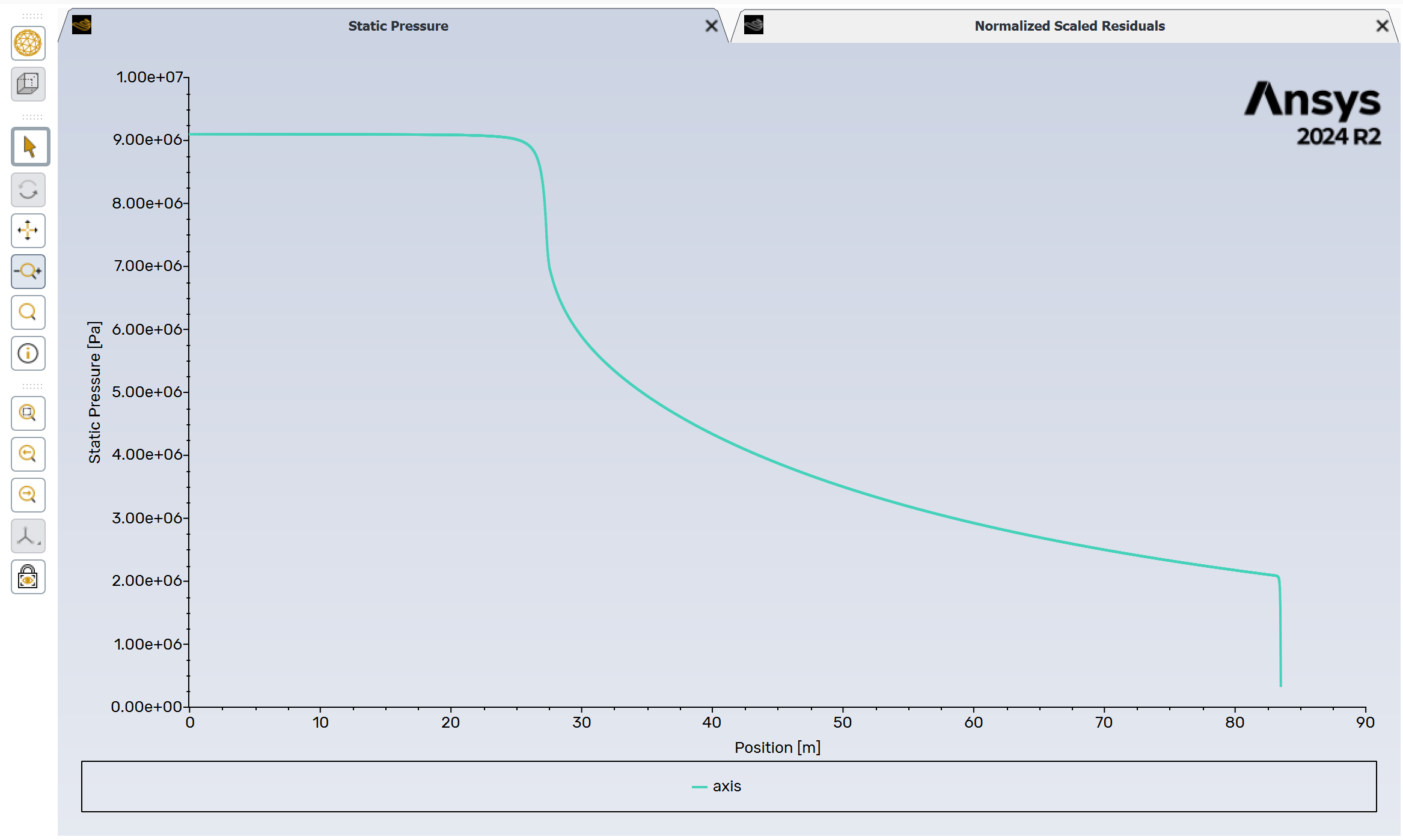

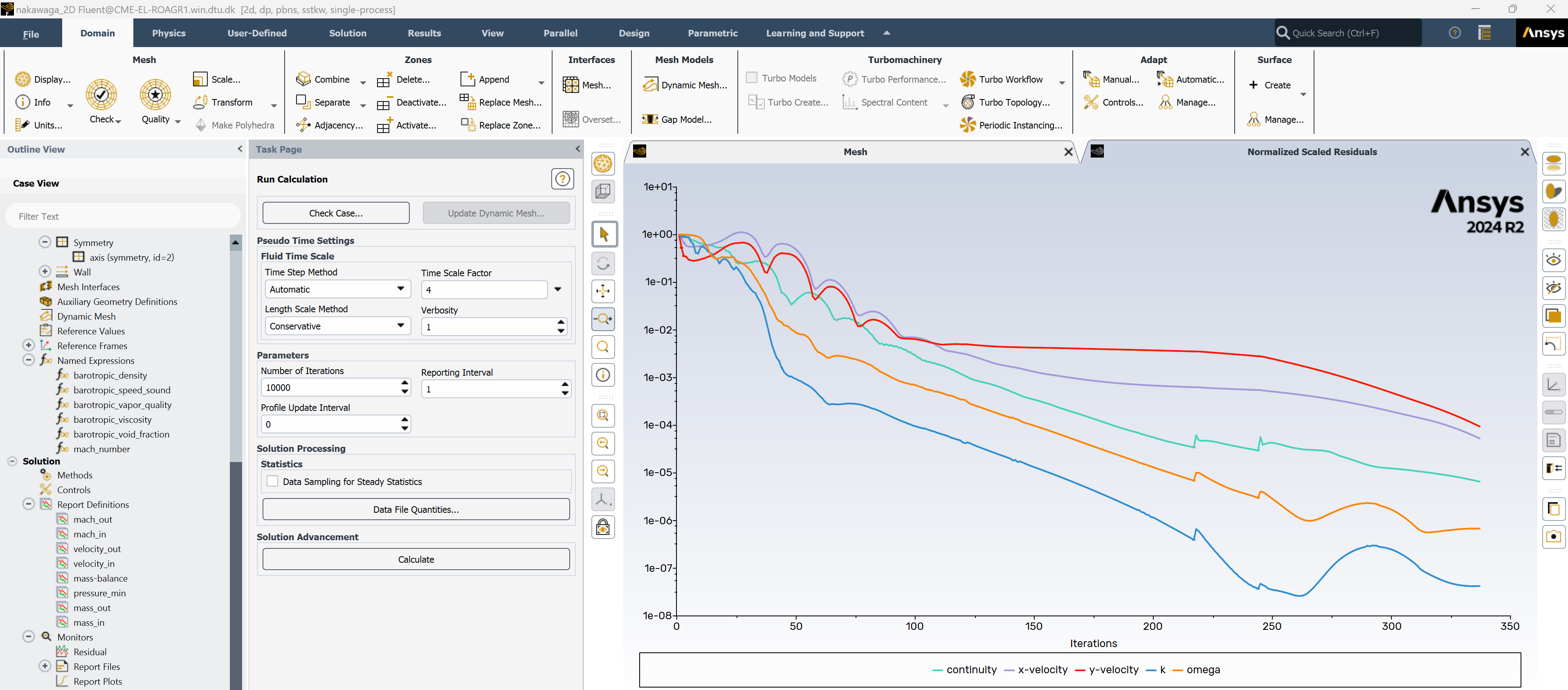

The convergence history and final pressure distribution should resemble the examples below:
